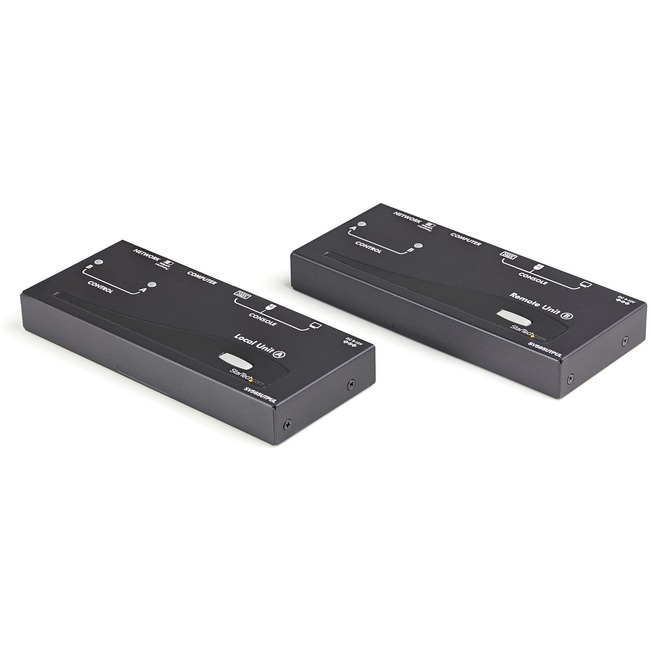

StarTech.com USB VGA KVM Console Extender over Cat5 UTP 1000 ft
Item#: STCSV565UTPUL
Category: Networking & Wi-Fi Accessories
Price: $547.06/Kit
Quick Overview
- High resolution support: Up to 1920x1200(WUXGA)/ 1600x1200(UXGA)
- Kit includes both local and remote units
- Compatibility mode enables hotkey commands to be passed to connected StarView KVMs
- USB computers are supported at the host and remote locations (USB keyboard and mouse required for remote console)
- Max Resolution Limit feature caps the resolution to prevent the resolution setting from exceeding the capability of the connected display
- Supports auto-switching between host and remote users or dedicated control
- Compatible with CAT 5, 5e, or 6 UTP cabling
- Intuitive hotkey commands
- Hotkey controlled Equalizer(sharpness), Gain(brightness), and RGB Skew adjustments
- Supports most combo keyboard and mouse sets (including Wireless)
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SV565UTPUL |
| Manufacturer Website Address | http://www.startech.com |
| Brand | StarTech.com |
| Product Name | USB VGA KVM Console Extender over Cat5 UTP 1000 ft |
| Marketing Information | The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away. You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support. More from the Manufacturer |
| Packaged Quantity | 1 Kit |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 984.25 ft |
| Video | |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 |
| Power Description | |
| Input Voltage | 240 V AC |
| Input Voltage Range | 110V AC to 240V AC |
| Power Consumption | 18 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Desktop |
| Transmitter Height | 0.80" |
| Transmitter Width | 6.20" |
| Transmitter Depth | 2.80" |
| Receiver Height | 0.80" |
| Receiver Width | 6.20" |
| Receiver Depth | 2.80" |
| Transmitter Weight (Approximate) | 1.37 lb |
| Receiver Weight (Approximate) | 1.37 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
