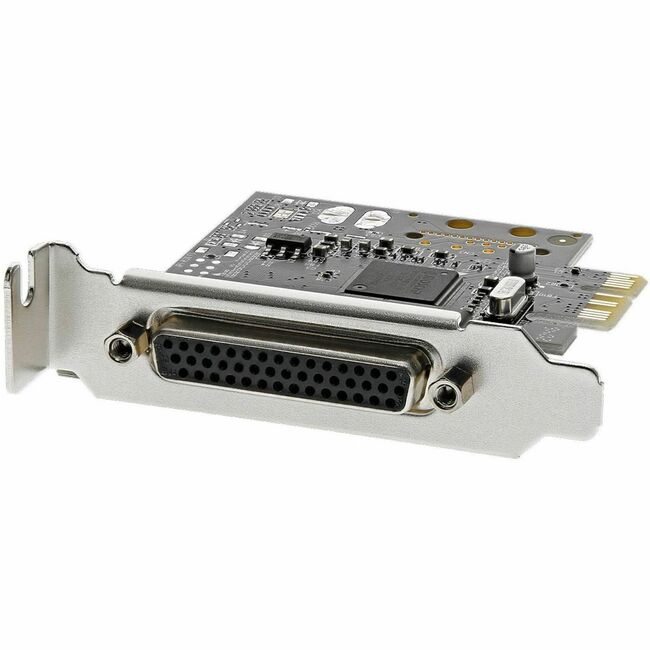

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
Item#: STCPEX4S553B
Category: Networking & Wi-Fi Accessories
Price: $162.47/Each
Reg Price: $185.99
Quick Overview
- Native single chip design
- Includes a full profile and low profile/half-height bracket
- On chip 256-byte depth FIFO in transmit/receive path of each port
- Single-Lane (x1) PCI-Express with throughput up to 2.5Gbps
- Supports hardware and software flow control
- Supports data transfer rates up to 250Kbps on each port
- Compliant with PCI Express base specifications revision 1.0a
- Automated out-of-band flow control using CTS/RTS and DSR/DTR
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX4S553B |
| Manufacturer Website Address | http://www.startech.com |
| Brand | StarTech.com |
| Product Name | 4 Port RS232 PCI Express Serial Card w/ Breakout Cable |
| Marketing Information | The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot. The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows®, Linux, and MAC OS. This product is a replacement for our PEX4S552B card. Backed by a StarTech.com lifetime warranty and free lifetime technical support. |
| Packaged Quantity | 1 Each |
| Product Type | Multiport Serial Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Maximum Data Transfer Rate | 1.95 Mbit/s |
| Interfaces/Ports | |
| Ports Expandability | 4 x DB-9 RS-232 - Serial, Via Cable |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 2.7" |
| Width | 0.5" |
| Weight (Approximate) | 8.40 oz |
| Miscellaneous | |
| Package Contents |
|
| TAA Compliant | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
